Join the Multisig

Join the BitSong Hyperlane validator multisig on an existing bridge using a production AWS setup (KMS signing + S3 checkpoint storage).

This guide explains how to join the validator multisig of the BitSong Hyperlane bridge (crescendo-1 ↔ Base Sepolia) using a production AWS setup: signing key in AWS KMS and checkpoints in S3.

It is for operators joining an existing bridge: you do not deploy the Mailbox, ISMs, or hooks — those already exist. You only generate your key, get added to the multisig, and start your validators.

It follows the official Hyperlane documentation adapted for BitSong. For the full AWS console walkthrough and the run/operate details, see the Agent Keys and Run Validators guides.

This is a production setup: no plaintext EVM private keys, no checkpoints on the local filesystem. It uses AWS KMS for signing and S3 for checkpoint storage.

This flow has been verified on the field: KMS key creation, address derivation, joining the MultisigISM, starting a second AWS-KMS validator, and a successful on-chain announcement on Base Sepolia.

How joining works

The multisig is enforced on-chain by a MessageId Multisig ISM: it holds the list of validator EVM addresses and a threshold of required signatures.

On Hyperlane the MultisigISM is immutable: there is no command to add a validator to an existing ISM. To add you, the bridge owner must create a new MultisigISM with the updated list and re-point the RoutingISM route to it. That owner procedure is documented in Rotate the Multisig.

There are therefore two roles:

Role	Who	What they do
Operator (you)	New validator	Create the KMS key, share the EVM address, run the validators
Bridge owner	BitSong team	Create the new MultisigISM with your address and update the RoutingISM

The full flow:

You prepare the AWS resources and derive the validator address

You send your EVM address to the BitSong team

The BitSong team adds you to the multisig (new ISM + new threshold)

You start the two validators and wait for the announcement

Bridge parameters (crescendo-1)

These are the real IDs of the bridge currently in production. You need them for the agent-config.json.

Mailbox ID (BitSong)

hex

0x68797065726c616e650000000000000000000000000000000000000000000000

validatorAnnounce (BitSong)

hex

Same value as the Mailbox ID (on Cosmos the announcement is handled by the mailbox module).

MerkleTreeHook (BitSong)

hex

0x726f757465725f706f73745f6469737061746368000000030000000000000000

IGP (BitSong)

hex

0x726f757465725f706f73745f6469737061746368000000040000000000000001

RoutingISM (BitSong)

hex

0x726f757465725f69736d00000000000000000000000000010000000000000001

Domain ID

number

BitSong: 71717171 — Base Sepolia: 84532

If these IDs ever change, recover them from the node:

Terminal

bitsongd query hyperlane mailboxes --output json | jq '.mailboxes'
bitsongd query hyperlane hooks merkle-tree-hooks --output json | jq '.merkle_tree_hooks'
bitsongd query hyperlane hooks igps --output json | jq '.igps'

On the current crescendo-1 deployment the bridge validators run in local mode (hex key + filesystem checkpoints), not AWS. This does not change the joining procedure: the MultisigISM stores only EVM addresses, so an AWS-KMS validator and a hex-key validator can coexist in the same multisig. This guide uses AWS because it is the recommended production approach.

Prerequisites

A VPS (Ubuntu 22.04/24.04, 2 vCPU, 2 GB RAM, 20 GB disk recommended)
Docker installed and working (guide)
Foundry installed (provides cast, needed to derive the address from KMS)
An AWS account
A private Base Sepolia RPC endpoint (do not use public RPCs in production)
Access to a synced BitSong node (RPC 26657 + gRPC 9090)
A Cosmos account funded with TBTSG to pay for the announcement gas

Terminal

sudo apt-get update && sudo apt-get install -y jq awscli
curl -L https://foundry.paradigm.xyz | bash && source ~/.bashrc && foundryup
cast --version

Step 1 — Create the AWS resources

Create the three AWS resources following the detailed Agent Keys → AWS Environment guide:

IAM user (e.g. hyperlane-validator-bitsong) with an access key for "Application running outside AWS"
Asymmetric KMS key for validator signing
Publicly readable S3 bucket for checkpoints

For the IAM user access key: console → IAM → Users → (your user) → Security credentials → Create access key → use case "Application running outside AWS".

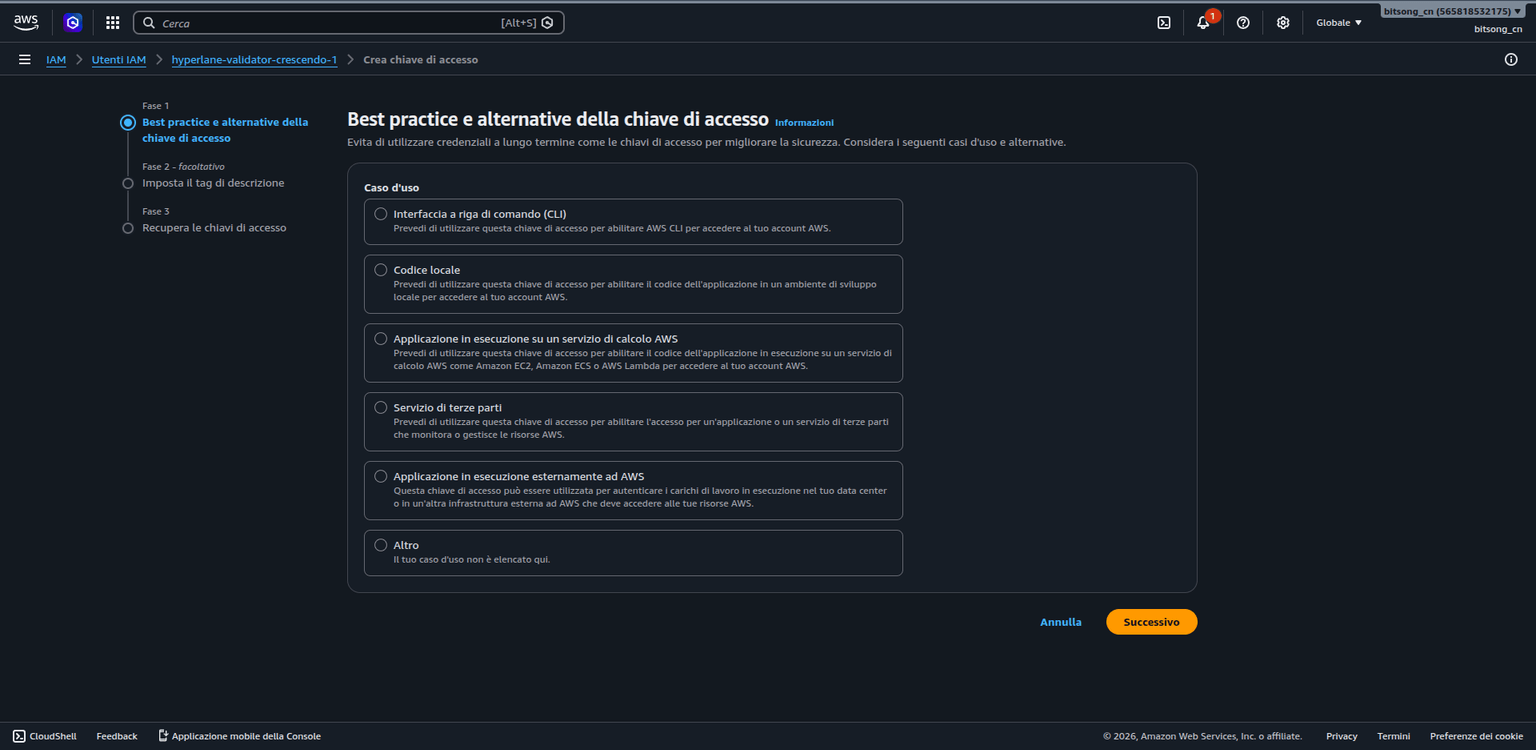

IAM – Use case: Application running outside AWS

The secret access key is shown only once. Download the .csv or copy it immediately; it cannot be recovered. Treat it like a password: keep it only in the server's environment file (chmod 600), never in a repository.

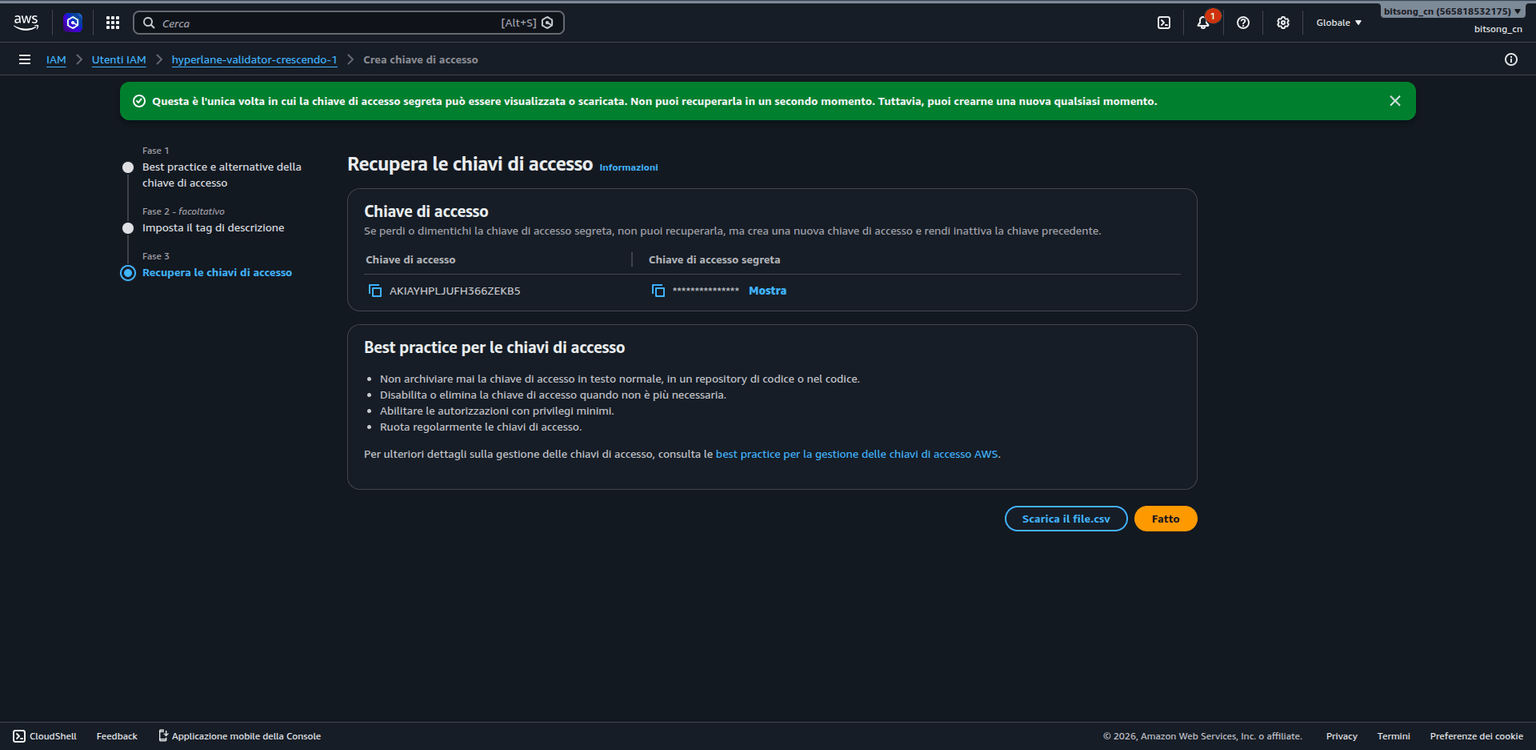

IAM – Access key created (secret masked)

Configure the environment on the server:

Terminal

export AWS_ACCESS_KEY_ID="<your-access-key-id>"
export AWS_SECRET_ACCESS_KEY="<your-secret-access-key>"
export AWS_REGION="us-east-1"   # use your region

AWS_REGION is required. Without it the agent fails with Invalid Configuration: Missing Region.

Create the KMS key with these parameters:

Setting	Value
Key type	Asymmetric
Key usage	Sign and verify
Key spec	`ECC_SECG_P256K1`
Alias	`hyperlane-validator-signer-bitsong`

In the KMS console, Create key → Configure key: select Asymmetric, Sign and verify, and the spec ECC_SECG_P256K1 (the secp256k1 curve used by Ethereum and Hyperlane).

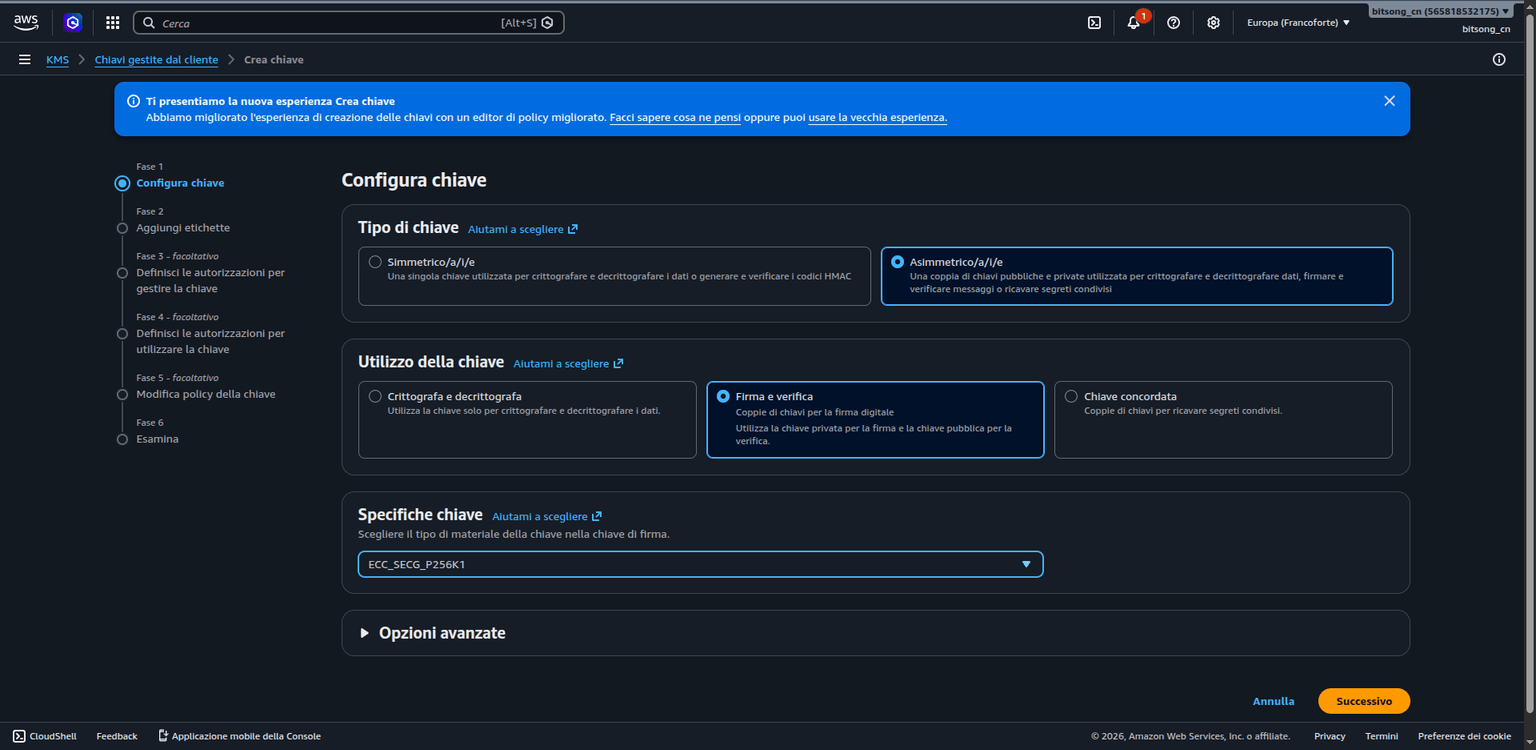

KMS – Configure key: Asymmetric, Sign and verify, ECC_SECG_P256K1

In the Define key usage permissions step, select the validator's IAM user so the agent can sign with the key:

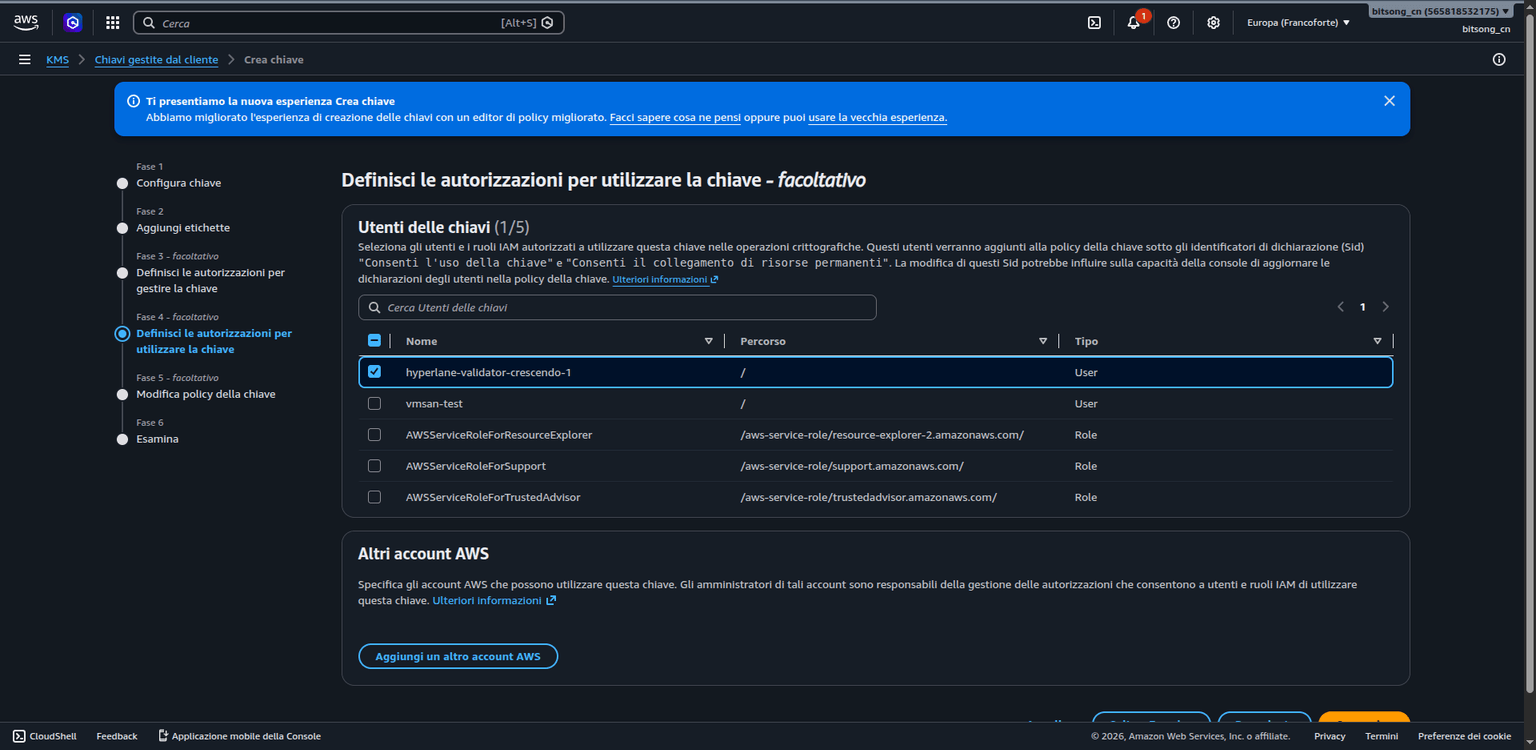

KMS – Key users: select the validator IAM user

Once finished, the key appears under Customer managed keys:

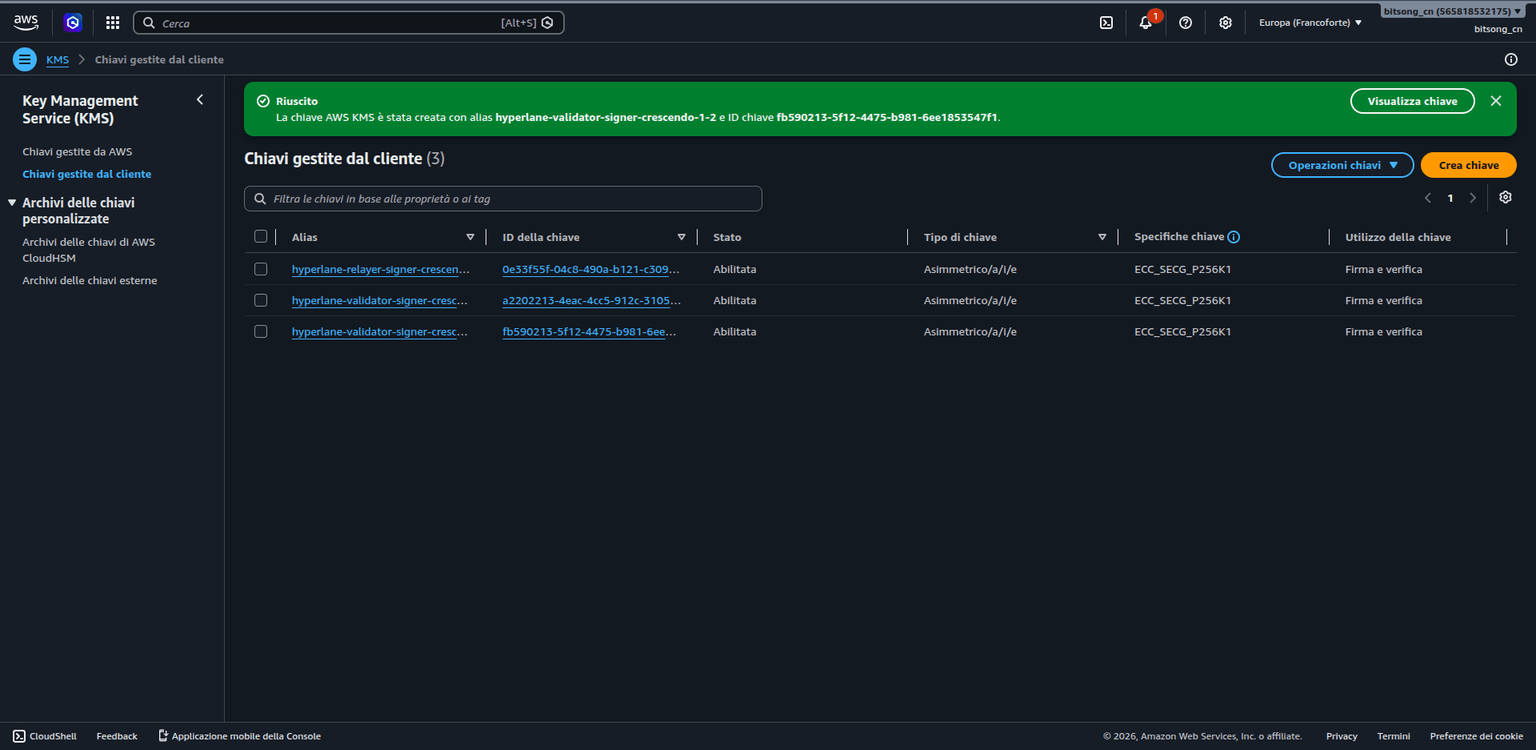

KMS – Key created

And an S3 bucket (same region) with this name:

S3 bucket

hyperlane-validator-signatures-bitsong

The bucket policy (public read + write only for your IAM user) is documented in the Agent Keys guide. The bucket must be publicly readable, otherwise the validator never writes its checkpoints — verify an anonymous GET on a missing key returns 404, not 403.

Step 2 — Derive your validator EVM address

This is the address that will go into the multisig. Derive it from the KMS key:

Terminal

AWS_KMS_KEY_ID=alias/hyperlane-validator-signer-bitsong cast wallet address --aws

Terminal

export VALIDATOR_ADDR="0x<kms-derived-validator-address>"
echo "Validator address to register in the multisig: $VALIDATOR_ADDR"

The EVM address depends only on the public key, which is not a secret. In the KMS console open the key → Public key tab, copy the PEM, and compute the address locally (needs only openssl + cast):

Terminal

# save the PEM to pk.pem, then:
POINT=$(openssl pkey -pubin -in pk.pem -outform DER | tail -c 65 | xxd -p | tr -d '\n')
cast to-checksum-address 0x$(cast keccak 0x${POINT:2} | cut -c27-66)

The address is the last 20 bytes of keccak256(uncompressed-public-key) — exactly what cast wallet address --aws does, but without credentials.

Verify S3 write access before continuing:

Terminal

aws s3 cp /etc/hostname s3://hyperlane-validator-signatures-bitsong/healthcheck.txt
aws s3 rm s3://hyperlane-validator-signatures-bitsong/healthcheck.txt

Step 3 — Send your address to the BitSong team

Share only the EVM address ($VALIDATOR_ADDR) with the team — never the private key or AWS credentials.

The BitSong team (bridge owner) re-creates the MultisigISM with the updated validator list and re-points the route. The exact owner commands are documented in Rotate the Multisig.

The threshold defines how many signatures are required for a message to be accepted. With 3 validators, a threshold of 2 keeps the bridge operational even if one validator goes offline.

When the operation is complete, verify your address is in the active multisig:

Terminal

# ID of the MultisigISM currently pointed to by the Base Sepolia route
ACTIVE_ISM=$(bitsongd query hyperlane ism isms --output json \
  | jq -r '.isms[] | select(."@type" | test("RoutingISM")) | .routes[] | select(.domain==84532) | .ism')

bitsongd query hyperlane ism isms --output json \
  | jq --arg id "$ACTIVE_ISM" '.isms[] | select(.id==$id) | {id, validators, threshold}'

Your $VALIDATOR_ADDR must appear in the validators array.

Step 4 — Create the Cosmos announcement key

BitSong is a Cosmos chain: checkpoint signing uses KMS, but the on-chain announcement transaction needs a Cosmos key (hex format).

Terminal

bitsongd keys add hyperlane-signer --keyring-backend test

COSMOS_SIGNER_KEY=0x$(bitsongd keys export hyperlane-signer --unarmored-hex --unsafe --keyring-backend test 2>&1 | tail -1)
export COSMOS_SIGNER_KEY

Fund the account with TBTSG (without a balance the announcement fails):

Terminal

bitsongd tx bank send <your-funded-key> $(bitsongd keys show hyperlane-signer -a --keyring-backend test) 10000000utbtsg \
  --from <your-funded-key> --keyring-backend test \
  --chain-id crescendo-1 --node tcp://localhost:26657 \
  --fees 10000utbtsg -y

Step 5 — Prepare configuration and environment

Terminal

mkdir -p $HOME/hyperlane-bitsong/{config,db}

Environment file (restricted permissions):

$HOME/hyperlane-bitsong/validator.env

AWS_ACCESS_KEY_ID=<your-access-key-id>
AWS_SECRET_ACCESS_KEY=<your-secret-access-key>
AWS_REGION=us-east-1
COSMOS_SIGNER_KEY=0x<your-cosmos-signer-private-key>
S3_BUCKET=hyperlane-validator-signatures-bitsong
HYPERLANE_IMAGE=ghcr.io/hyperlane-xyz/hyperlane-agent:agents-v2.2.0

Terminal

chmod 600 $HOME/hyperlane-bitsong/validator.env
source $HOME/hyperlane-bitsong/validator.env
docker pull --platform linux/amd64 $HYPERLANE_IMAGE

Create the agent-config.json with the real bridge IDs already filled in:

$HOME/hyperlane-bitsong/config/agent-config.json

{
  "chains": {
    "bitsong": {
      "name": "bitsong",
      "chainId": "crescendo-1",
      "domainId": 71717171,
      "protocol": "cosmosNative",
      "bech32Prefix": "bitsong",
      "slip44": 639,
      "contractAddressBytes": 32,
      "canonicalAsset": "utbtsg",
      "rpcUrls": [{ "http": "http://127.0.0.1:26657" }],
      "grpcUrls": [{ "http": "http://127.0.0.1:9090" }],
      "nativeToken": { "name": "BitSong", "symbol": "BTSG", "decimals": 6, "denom": "utbtsg" },
      "gasPrice": { "amount": "0.025", "denom": "utbtsg" },
      "gasMultiplier": "1.5",
      "blocks": { "confirmations": 1, "estimateBlockTime": 6, "reorgPeriod": 1 },
      "index": { "from": 3895000, "chunk": 500 },
      "mailbox": "0x68797065726c616e650000000000000000000000000000000000000000000000",
      "validatorAnnounce": "0x68797065726c616e650000000000000000000000000000000000000000000000",
      "merkleTreeHook": "0x726f757465725f706f73745f6469737061746368000000030000000000000000",
      "interchainGasPaymaster": "0x726f757465725f706f73745f6469737061746368000000040000000000000001"
    },
    "basesepolia": {
      "name": "basesepolia",
      "chainId": 84532,
      "domainId": 84532,
      "protocol": "ethereum",
      "rpcUrls": [{ "http": "https://<your-private-base-sepolia-rpc>" }],
      "nativeToken": { "name": "Ether", "symbol": "ETH", "decimals": 18 },
      "blocks": { "confirmations": 1, "estimateBlockTime": 2, "reorgPeriod": 1 },
      "index": { "from": 39040037, "chunk": 999 },
      "mailbox": "0x6966b0E55883d49BFB24539356a2f8A673E02039",
      "validatorAnnounce": "0x20c44b1E3BeaDA1e9826CFd48BeEDABeE9871cE9",
      "merkleTreeHook": "0x86fb9F1c124fB20ff130C41a79a432F770f67AFD",
      "interchainGasPaymaster": "0x28B02B97a850872C4D33C3E024fab6499ad96564"
    }
  }
}

Point BitSong's rpcUrls/grpcUrls at your node. For Base Sepolia use a private RPC. The index.from for BitSong should be a recent height (not 1), and 39040037 for Base Sepolia matches the current bridge deployment.

The public Base Sepolia RPC (https://sepolia.base.org) limits log queries to 2000 blocks, and Coinbase CDP limits to 1000. With a higher index.chunk you will see query exceeds max block range and indexing stalls. Keep basesepolia.index.chunk ≤ 999 (CDP) or ≤ 2000 (public) — 999 is safe for both.

Terminal

jq . $HOME/hyperlane-bitsong/config/agent-config.json > /dev/null && echo "Valid JSON"

Step 6 — Start the two validators

You need two containers: one watches BitSong, the other Base Sepolia. Both sign with the same KMS key but write to separate S3 folders.

In production use S3: relayers (often on other machines) read checkpoints from the URL announced on-chain. With --checkpointSyncer.type localStorage the validator announces a file:///... path readable only by relayers on the same host — fine for a single-machine test, unsuitable for a distributed setup.

Terminal

mkdir -p $HOME/hyperlane-bitsong/db/validator-bitsong $HOME/hyperlane-bitsong/db/validator-basesepolia
source $HOME/hyperlane-bitsong/validator.env

BitSong validator

Terminal

docker run -d \
  --name hyperlane-validator-bitsong \
  --restart unless-stopped \
  --network host \
  --user $(id -u):$(id -g) \
  --ulimit nofile=65536:65536 \
  --env-file $HOME/hyperlane-bitsong/validator.env \
  -e CONFIG_FILES=/config/agent-config.json \
  -v $HOME/hyperlane-bitsong/config/agent-config.json:/config/agent-config.json:ro \
  -v $HOME/hyperlane-bitsong/db/validator-bitsong:/hyperlane_db \
  --log-opt max-size=50m --log-opt max-file=5 \
  $HYPERLANE_IMAGE \
  ./validator \
  --db /hyperlane_db \
  --originChainName bitsong \
  --reorgPeriod 1 --interval 10 \
  --validator.type aws \
  --validator.region $AWS_REGION \
  --validator.id alias/hyperlane-validator-signer-bitsong \
  --chains.bitsong.signer.type cosmosKey \
  --chains.bitsong.signer.key $COSMOS_SIGNER_KEY \
  --chains.bitsong.signer.prefix bitsong \
  --checkpointSyncer.type s3 \
  --checkpointSyncer.bucket $S3_BUCKET \
  --checkpointSyncer.region $AWS_REGION \
  --checkpointSyncer.folder bitsong \
  --metrics-port 9101 --log.format json --log.level info

The BitSong validator always uses cosmosKey for the chain signer (to sign the on-chain announcement), while checkpoint signing uses aws (KMS).

Base Sepolia validator

The Base Sepolia validator sends an on-chain announcement transaction: fund your $VALIDATOR_ADDR with ETH on Base Sepolia (Coinbase faucet) before starting it.

Terminal

docker run -d \
  --name hyperlane-validator-basesepolia \
  --restart unless-stopped \
  --network host \
  --user $(id -u):$(id -g) \
  --ulimit nofile=65536:65536 \
  --env-file $HOME/hyperlane-bitsong/validator.env \
  -e CONFIG_FILES=/config/agent-config.json \
  -v $HOME/hyperlane-bitsong/config/agent-config.json:/config/agent-config.json:ro \
  -v $HOME/hyperlane-bitsong/db/validator-basesepolia:/hyperlane_db \
  --log-opt max-size=50m --log-opt max-file=5 \
  $HYPERLANE_IMAGE \
  ./validator \
  --db /hyperlane_db \
  --originChainName basesepolia \
  --reorgPeriod 1 --interval 10 \
  --validator.type aws \
  --validator.region $AWS_REGION \
  --validator.id alias/hyperlane-validator-signer-bitsong \
  --chains.basesepolia.signer.type aws \
  --chains.basesepolia.signer.region $AWS_REGION \
  --chains.basesepolia.signer.id alias/hyperlane-validator-signer-bitsong \
  --checkpointSyncer.type s3 \
  --checkpointSyncer.bucket $S3_BUCKET \
  --checkpointSyncer.region $AWS_REGION \
  --checkpointSyncer.folder basesepolia \
  --metrics-port 9201 --log.format json --log.level info

Step 7 — Verify

Check the containers are running and read the logs:

Terminal

docker ps --filter "name=hyperlane-validator" --format "table {{.Names}}\t{{.Status}}"
docker logs -f --tail 100 hyperlane-validator-bitsong

Verify the BitSong validator announcement (can take up to 2 minutes):

Terminal

bitsongd query hyperlane ism announced-storage-locations \
  0x68797065726c616e650000000000000000000000000000000000000000000000 \
  $(echo $VALIDATOR_ADDR | tr '[:upper:]' '[:lower:]') \
  --output json --node tcp://localhost:26657 | jq '.storage_locations'

A non-empty storage_locations array confirms the validator announced where relayers can find its checkpoints.

Verify checkpoints are written to S3 (they appear when messages are dispatched from the origin Mailbox):

Terminal

aws s3 ls s3://$S3_BUCKET/bitsong/ --recursive
aws s3 ls s3://$S3_BUCKET/basesepolia/ --recursive

Troubleshooting

The Cosmos signer account needs TBTSG for gas. Check the address, fund it, and restart the container:

Terminal

bitsongd keys show hyperlane-signer -a --keyring-backend test
docker restart hyperlane-validator-bitsong

The KMS-derived address needs ETH on Base Sepolia. Recover it, fund it, and restart:

Terminal

AWS_KMS_KEY_ID=alias/hyperlane-validator-signer-bitsong cast wallet address --aws
docker restart hyperlane-validator-basesepolia

Read the logs: common causes are invalid agent-config JSON, unreachable RPC/gRPC endpoints, missing AWS credentials, a wrong KMS alias, or a missing COSMOS_SIGNER_KEY.

Terminal

docker logs hyperlane-validator-bitsong

Next Steps

Run Validators

Full validator/relayer reference: local and AWS deployments, monitoring, and operations.

Rotate the Multisig

The owner-side procedure that adds your address to the bridge.

Agent Keys

Detailed IAM, KMS, and S3 bucket steps in the AWS console.

Edit this pageorReport an issue

Testing Warp Route

Test cross-chain token transfers between BitSong and Base Sepolia using your deployed Hyperlane warp route.

Rotate the Multisig

Owner procedure to change the Hyperlane validator set or threshold on the live BitSong crescendo-1 bridge by creating a new MultisigISM and re-pointing both sides.
